1983-87 Chevy Truck C/K 10 Updated Complete Wiring Harness - American Autowire
SKU # 510706
$1,015.55
Save this product for later
1983-87 Chevy Truck C/K 10 Updated Complete Wiring Harness - American Autowire
Product Details
Brand: American Autowire
CUSTOM_SKU: 61F7, 3J8

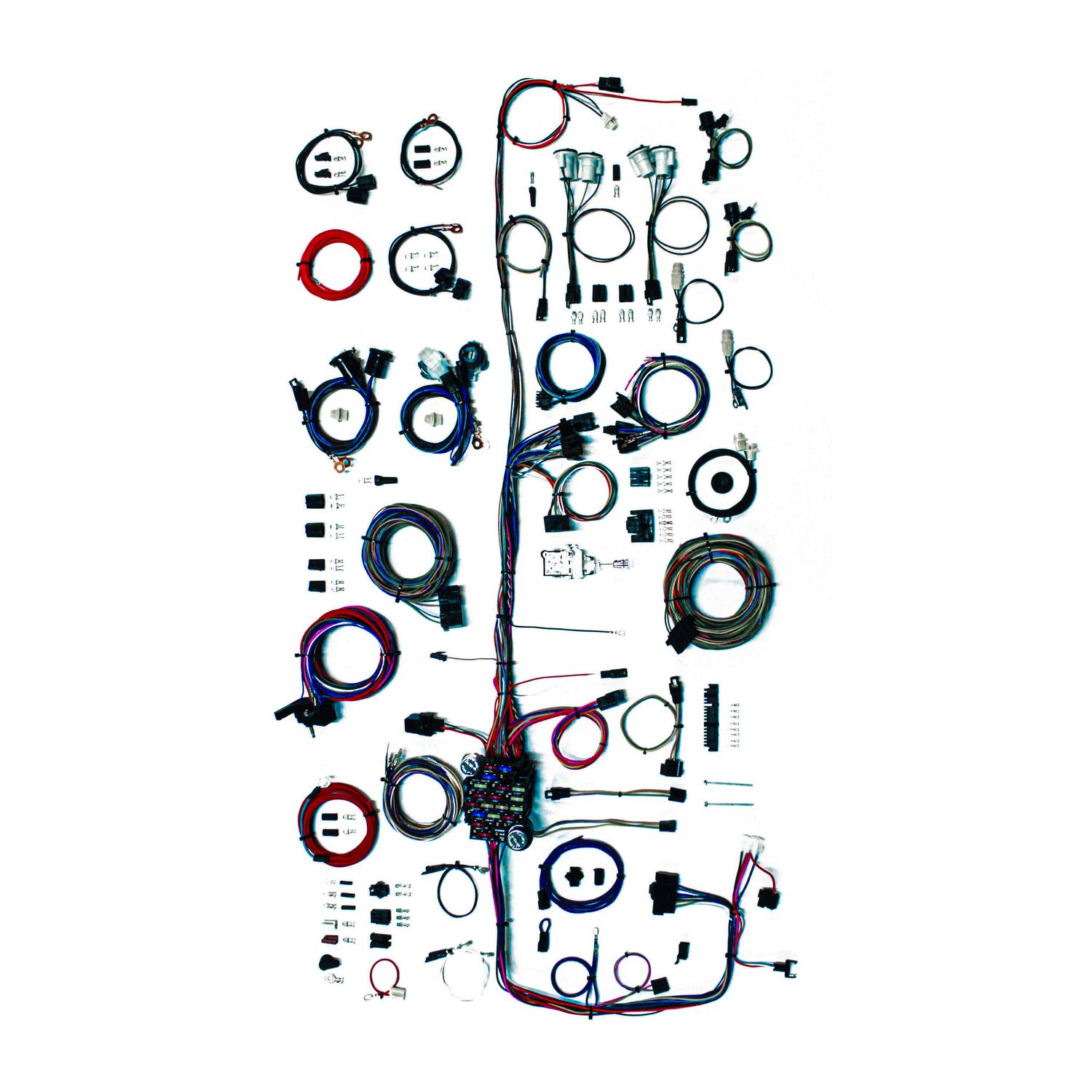

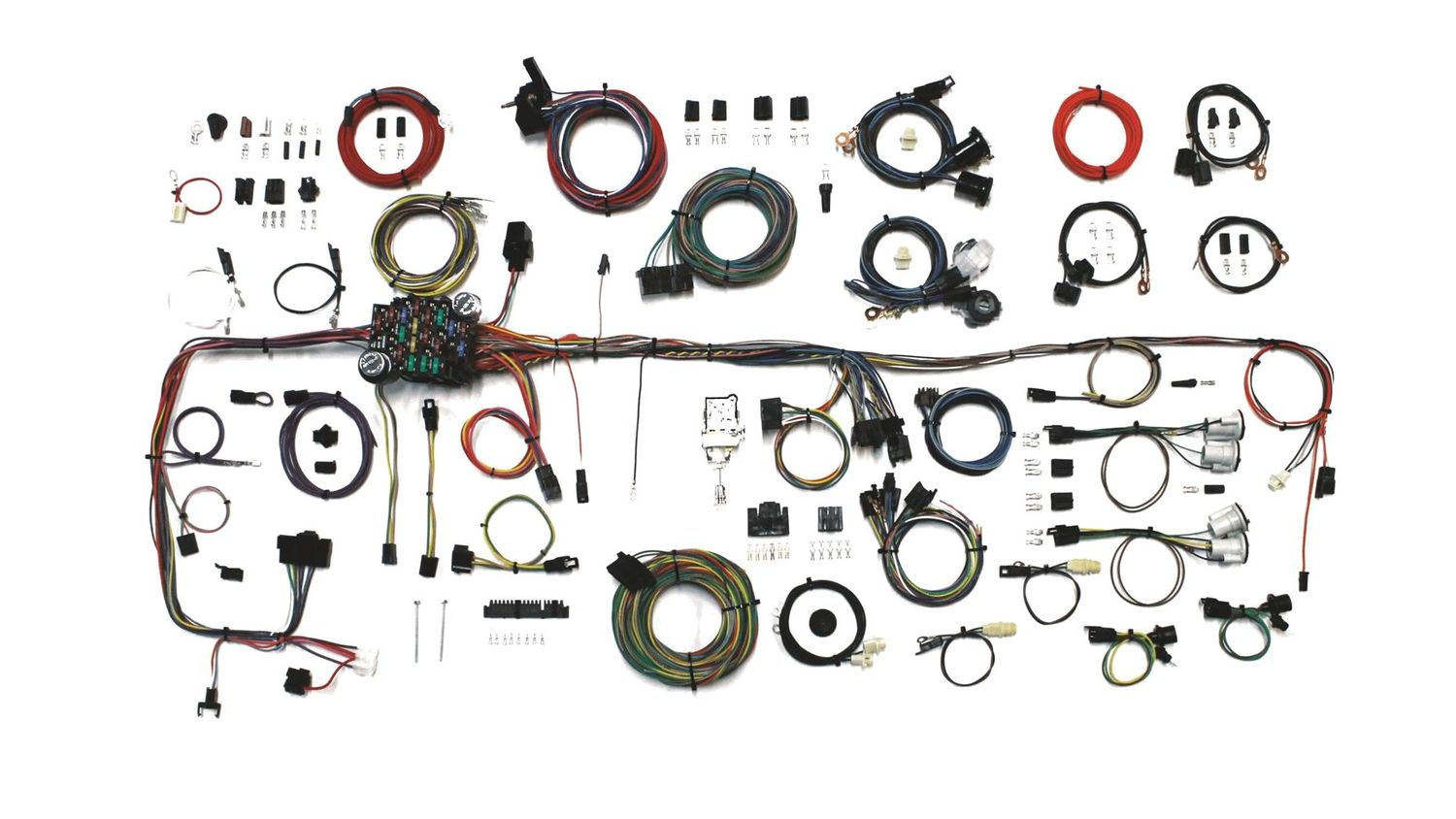

Upgraded American Auto Wire complete wiring harness for 1983-1987 Chevy Truck. Kit includes all the basics needed to rewire a vehicle from headlight to tail light, and will accommodate popular add-on items such as electronic fuel injection, aftermarket gauges and common supporting modifications. This kit is compatible with Suburbans.
- An updated ATC fuse panel and fuses, along with modern GXL wire throughout. Wire functions are labeled every 3 to 5 inches.
- Pre-built dash harness and our exclusive gauge cluster disconnect system for use with stock or aftermarket instruments.
- Engine and front light harness with extra-long leads for custom routing and updated engine and transmission combinations. Original-style bulkhead connectors included.
- Six-way power accessory plug can be used as a convenient power source for aftermarket accessories.
- A rear body wiring with extra-long leads for custom routing.
- 175 amp mega fuse kit with 6 gauge charge cable to support a high output charging system and internally regulated alternator.
- Original-replacement connectors, terminals and lamp sockets.
- Headlight switch with 26 amp internal circuit breaker and new floor dimmer switch included.
- Dash harness includes a connector for the 75 and up GM steering column connector. A mating connector and terminals are included for easy adaption to earlier GM or aftermarket columns.
- Connections for both floor and column mounted dimmer switches included.
Fits:
1983-1987 Chevy Truck C/K 10
